Enterprise Services adopting Shared-Nothing Architecture(SNA)

6 min readMar 1, 2024

In the realm of distributed systems, the concept of sharing often stands as a double-edged sword. While sharing resources can facilitate cooperation and reduce redundancy, it also introduces complexities such as coordination overhead and contention, which can hinder scalability, availability, and performance. Shared-nothing architecture emerges as a powerful solution to mitigate these challenges, offering a framework where each node operates independently, minimizing the need for coordination and enabling seamless scalability.

Embracing Independence: The Essence of Shared-Nothing Architecture

Shared-nothing architecture advocates for minimizing shared resources and dependencies within a system. By decomposing stateful and stateless components, this approach fosters a symmetrical and homogeneous environment, where each instance of a stateless application is identical and interchangeable. This symmetry simplifies scaling, as load can be evenly distributed across instances, allowing for straightforward horizontal scaling by adding or removing nodes as needed.

Scaling Stateless Components: Simplicity and Efficiency

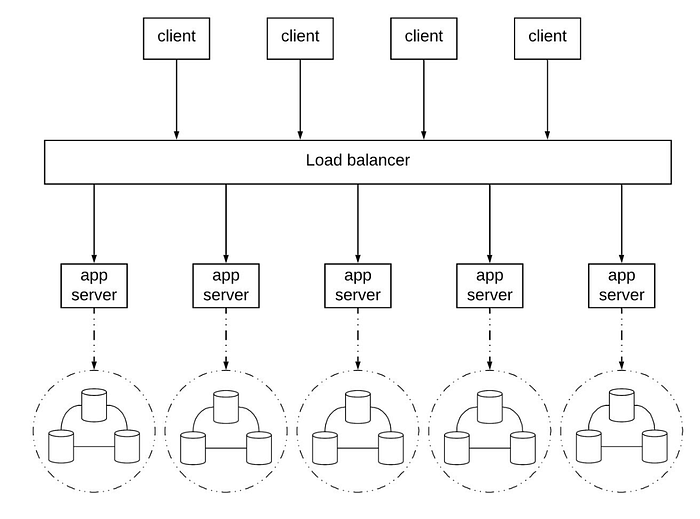

In stateless systems, scalability and availability are relatively straightforward to achieve. Load balancers distribute incoming requests across identical instances, ensuring uniform utilization of resources and enabling quick detection and mitigation of node failures. By leveraging techniques such as heartbeat monitoring or API-based health checks, the system can maintain high availability and adapt to fluctuating loads with ease.

Navigating the Complexity of Stateful Systems

However, managing stateful components presents a more intricate challenge. Unlike stateless systems, where nodes are interchangeable, stateful systems house unique data sets on each node, necessitating careful routing and replication strategies to ensure fault tolerance and consistency. Partitioning data helps reduce contention and isolate failure domains, while replication across multiple nodes safeguards against data loss and increases availability.

Striking a Balance: Partitioning, Replication, and Trade-offs

Shared-nothing architecture embodies a spectrum of sharing, where the balance between partitioning and replication varies based on system requirements. While minimal sharing enhances performance and fault tolerance, it may limit flexibility and transactional capabilities. Systems must carefully evaluate trade-offs, considering factors such as data access patterns, concurrency control mechanisms, and transactional semantics.

Practical Considerations and Limitations

Despite its benefits, shared-nothing architecture is not without challenges. The partitioning of data can constrain access patterns and limit transactional capabilities, potentially hindering the flexibility of applications. Adapting to evolving requirements or accommodating complex query patterns may require significant redesign or incur additional overhead.

Harnessing the Power of Independence

In conclusion, shared-nothing architecture offers a compelling approach to building scalable, resilient distributed systems. By embracing independence and minimizing sharing, organizations can achieve greater performance, availability, and fault tolerance. However, careful consideration of trade-offs and a nuanced understanding of system requirements are essential to realizing the full potential of this architectural paradigm.

In the dynamic landscape of distributed computing, shared-nothing architecture stands as a testament to the ingenuity of design principles aimed at conquering the challenges of scalability and resilience. As organizations continue to push the boundaries of innovation, the principles of independence and minimal sharing will remain foundational pillars in the pursuit of distributed excellence.

Advantages of SNA

There are many advantages of SNA, the main ones being scalability, fault tolerance, and less downtime.

Easier to Scale : There is no limit when it comes to scaling in the shared-nothing model. Since nodes are independent and don’t share resources, scaling up your application won’t disrupt the entire system or lead to resource contention.

Eliminates Single Points of Failure : If one of the nodes in the application fails, it doesn’t affect the functionality of others as each node is self-reliant. Although node failure can impact performance, it doesn’t disrupt the overall behavior of the app as a whole.

Simplifies Upgrades and Prevents Downtime : There is no need to shut down the system while working on or upgrading individual nodes. Thanks to redundancy, upgrading one node at a time doesn’t impact the effectiveness of others.

Disadvantages of SNA

Once you considered the benefits of SNA, take a look at a couple of disadvantages that can help you decide whether it is the best option for you.

Cost : A node consists of its individual processor, memory, and disk. Having dedicated resources essentially means higher costs when it comes to setting up the system. Additionally, transmitting data that requires software interaction is more expensive compared to architectures with shared disk space and/or memory.

Decreased Performance : Scaling up your system can eventually affect the overall performance if the cross-communication layer isn’t set up correctly.

Several distributed systems are built on shared-nothing architecture principles to achieve scalability, fault tolerance, and performance. Here are some notable examples:

1. Apache Cassandra:

It employs a shared-nothing architecture to distribute data across multiple partitions and nodes.
Each partition operates independently, managing its own subset of data and handling read/write operations locally.
This architecture enables Cassandra to scale horizontally to accommodate growing workloads while ensuring high availability and low latency.

2. Google Bigtable:

Bigtable is a distributed storage system designed for managing structured data at scale, developed by Google.
It follows a shared-nothing architecture, where data is partitioned into tablets distributed across multiple servers.
Each tablet server is responsible for a subset of tablets, allowing for parallel processing and efficient data access.
Bigtable’s shared-nothing architecture enables it to deliver high performance and scalability for a wide range of applications, including analytics and real-time data processing.

3. Netflix’s Chaos Monkey:

While not a system itself, Chaos Monkey is a tool developed by Netflix to test the resilience of its distributed systems.
Netflix’s microservices architecture, which relies heavily on cloud-based infrastructure, follows shared-nothing principles.
Each microservice operates independently and communicates with others via well-defined APIs.
Chaos Monkey randomly terminates instances in production to simulate failures and ensure that the system can gracefully handle disruptions without compromising availability.

These examples demonstrate the versatility and effectiveness of shared-nothing architecture in building scalable, fault-tolerant distributed systems that power some of the world’s largest applications and services.

Enterprise Services in Context of Shared Nothing

We covered software systems with Shared nothing architecture thus far . Now let’s discuss how various enterprise services type such as 1. Orchestration service, 2. Frameworks, and 3. Domain services can adopt shared-nothing architecture principles to varying degrees, depending on their design goals and requirements. Let’s break down each of these components.

Orchestration Service:

An orchestration layer coordinates the interactions and workflows among various components within a system or application. While orchestration itself focuses on coordination, the underlying architecture of the orchestration layer can be designed to minimize sharing and dependencies, aligning with shared-nothing principles.

Shared-Nothing Characteristics: In many cases, orchestration layers can be designed to operate in a shared-nothing fashion, where each orchestration instance manages its own state and does not rely heavily on shared resources. This approach can enhance scalability and fault tolerance by distributing workload across independent orchestration instances.
Trade-offs: However, depending on the specific requirements and complexity of the orchestration tasks, some degree of shared state( e.g., storing some metadata etc.) or coordination may be necessary. Achieving a balance between minimizing sharing and meeting coordination needs is crucial in designing an effective orchestration layer.

Frameworks:

Frameworks provide a structured environment for developing and deploying applications, offering pre-built components, libraries, and abstractions to streamline development tasks. Whether a framework adheres to shared-nothing principles depends on its architecture and design philosophy.

Shared-Nothing Characteristics: Frameworks generally adopt shared-nothing principles by promoting modular, loosely coupled components that operate independently. This approach simplifies scalability and enhances fault tolerance by isolating components and minimizing shared dependencies.
Trade-offs: This approch does not need any data sharing by design.

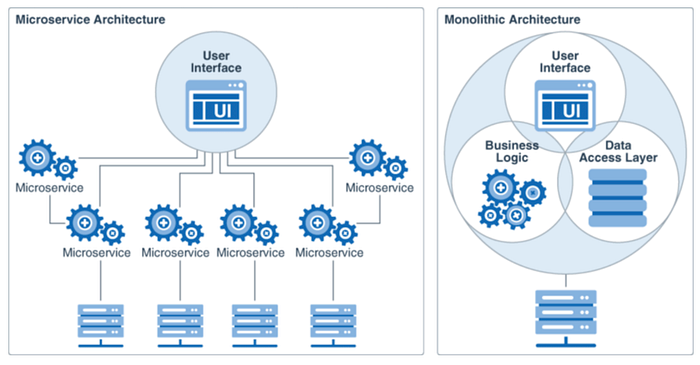

Domain(micro) Service:

Domain services encapsulate business logic and domain-specific functionality within an application, providing a layer of abstraction between the business domain and the underlying infrastructure. Shared-nothing architecture principles can influence the design and implementation of domain services.

Shared-Nothing Characteristics: Domain services can be designed to operate in a shared-nothing fashion (and represent a true micro service architecture), where each service instance manages its own state and communicates with other services through well-defined interfaces. This approach promotes autonomy and scalability by minimizing shared dependencies.
Trade-offs: However, domain services may need to share data or coordinate activities to fulfill complex business requirements. Balancing the autonomy of individual services with the need for collaboration and data consistency is essential in designing effective domain service architectures.

Conclusion:

In summary, while different type of enterprise services such as orchestration service, frameworks, and domain services can align with shared-nothing architecture principles, the extent to which they do so depends on their specific requirements, design goals, and trade-offs. By carefully considering scalability, fault tolerance, and coordination needs, organizations can leverage shared-nothing principles to build highly scalable, robust and resilient distributed systems.
